Trasformatori

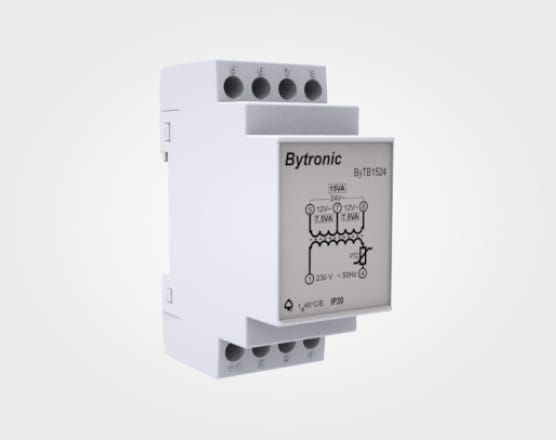

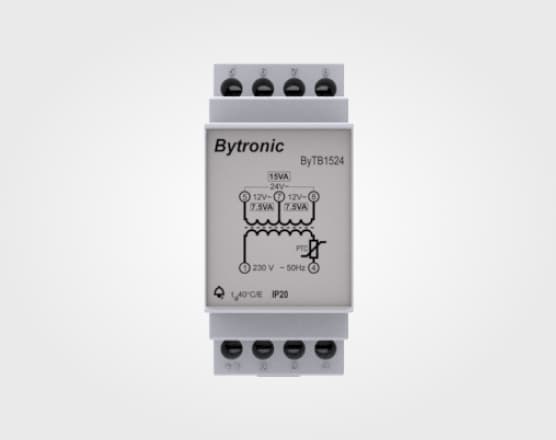

ByTB1524

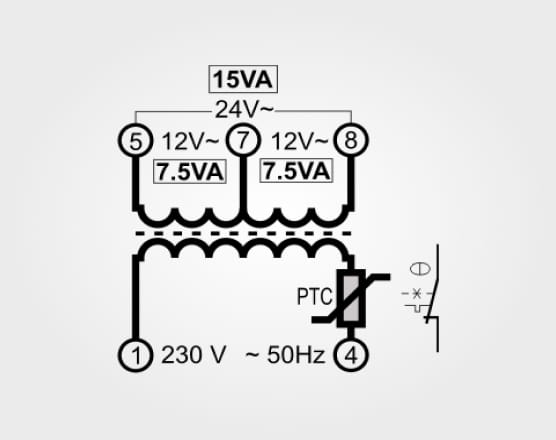

- Alimentazione primaria: 230V
- Alimentazioni secondarie: 12-12, 24V
- Potenza discontinua sul secondario: 7.5VA, 7.5VA, 15VA
Documentazione
Datasheet (178.12 KB)
Curva di De-rating Termico (Power Derating Chart) (38.10 KB)
